掘削機のスケルトン スクリーニング バケット
  • 掘削機のスケルトン スクリーニング バケット掘削機のスケルトン スクリーニング バケット
  • 掘削機のスケルトン スクリーニング バケット掘削機のスケルトン スクリーニング バケット
  • 掘削機のスケルトン スクリーニング バケット掘削機のスケルトン スクリーニング バケット

掘削機のスケルトン スクリーニング バケット

12 年以上の取り付けエンジニアリング経験を持つ専門メーカーおよび信頼できる工場として、当社は高効率の材料分離およびスクリーニング作業に合わせてカスタマイズされたプレミアム掘削機スケルトン スクリーニング バケットを提供しています。このバケットは、高張力鋼のグリッド構造とシームレスな一体溶接で構築されており、スクリーニング効率の低さ、グリッドの変形、材料の分離が不完全であるなど、通常のモデルにありがちな欠点を解決しています。 1~50トンの掘削機に対応しており、石材の選別、土石の分別、建設廃棄物の分別、河川の浚渫に適しています。当社は大量の卸売とカスタムカスタマイズをサポートし、認定製品を 30 か国以上に輸出しています。工場で厳格にテストされており、建設および環境保護プロジェクトに安定したパフォーマンスを提供します。

At XINGCHUANG, we manufacture Excavator Skeleton Screening Buckets to help contractors combine material handling and preliminary screening in one operation. Featuring a hollow grid structure, the bucket allows smaller particles such as soil and sediment to pass through the gaps while retaining larger stones, concrete blocks and other reusable materials. This design helps reduce unnecessary material handling and makes on-site sorting more efficient.

With CE certification, over 12 years of manufacturing experience and customized production capabilities, we provide screening bucket solutions for different excavator models and working conditions.

How Does the Screening Structure Work?

The screening performance mainly depends on the bucket grid design, spacing and overall structural geometry.

Unlike a conventional solid bucket, our screening bucket uses evenly arranged steel ribs to create screening gaps. During excavation and material handling, finer particles fall through these openings, while larger materials remain inside the bucket for further transportation or processing.

This working principle is particularly useful when contractors need to separate soil from stones, remove fine debris from construction waste or recover reusable aggregate materials.

The grid spacing can be adjusted according to the target particle size. We offer standard spacing from 50mm to 200mm, with customized options available for specific material requirements.

Built for Repeated Heavy-Duty Screening

Screening operations expose bucket structures to repeated impacts, friction and uneven loads. If the steel plate is too thin or the welding quality is inconsistent, grid bars may deform, crack or become detached after prolonged use.

To address these issues, we use high-strength Q355 manganese steel as the main structural material. Its combination of strength and toughness helps the bucket withstand repeated contact with stones, concrete fragments and other abrasive materials.

Our manufacturing process includes:

  • Automatic integral welding: Improves structural consistency and reduces weak welding points.
  • Secondary stress relief treatment: Helps reduce residual welding stress and the risk of structural deformation.
  • Reinforced bucket construction: Strengthens key load-bearing areas for demanding operating conditions.
  • Optimized curved bucket body: Helps materials move through the bucket more smoothly and reduces material accumulation.

Each finished bucket undergoes quality inspection before delivery. We focus on welding integrity, dimensional accuracy and structural reliability to ensure the product is suitable for its intended excavator and working environment.

Match the Bucket to Your Material and Excavator

Choosing the correct bucket requires more than checking its external dimensions. Excavator tonnage, hydraulic performance, material density, target screening size and working frequency all influence the final configuration.

Our engineering team considers these factors when recommending a suitable model.

For Construction Waste Recycling

The bucket separates soil and smaller debris from larger concrete fragments, bricks and stones. This helps contractors sort mixed demolition materials and identify reusable resources.

For Quarry and Aggregate Handling

Different grid openings allow operators to separate smaller particles from larger stones during preliminary material classification, reducing unnecessary transportation of mixed materials.

For River Dredging and Sediment Removal

The hollow structure allows finer sediment to pass through while retaining larger debris and stones, helping improve material handling efficiency during river cleaning operations.

For Foundation Preparation and Farmland Improvement

It can help remove stones, hard blocks and unwanted debris from soil, making it easier to prepare land for subsequent construction or agricultural work.

Proven Performance in Overseas Projects

Our products are designed around actual construction requirements rather than standard dimensions alone.

In 2025, we completed a customized order of 50 screening buckets for an environmental engineering company in the Philippines. The equipment was used for urban construction waste sorting and river silt cleaning projects.

According to customer feedback from the project, the Excavator Skeleton Screening Buckets helped separate waste stones from fine soil more efficiently, improving material recovery and reducing the need for manual sorting.

This project also demonstrates our ability to handle batch customization for overseas engineering contractors.

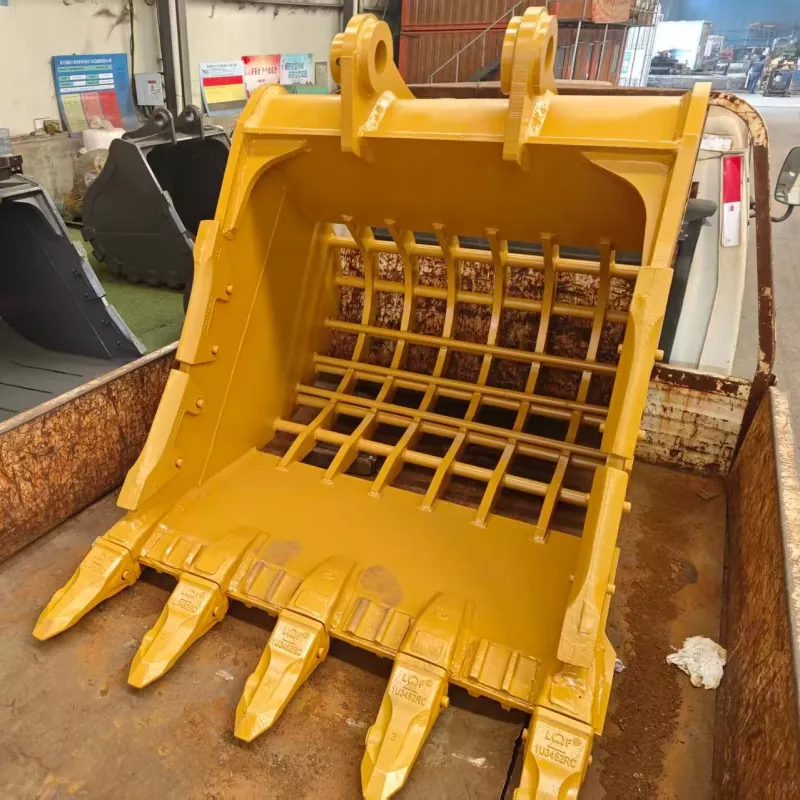

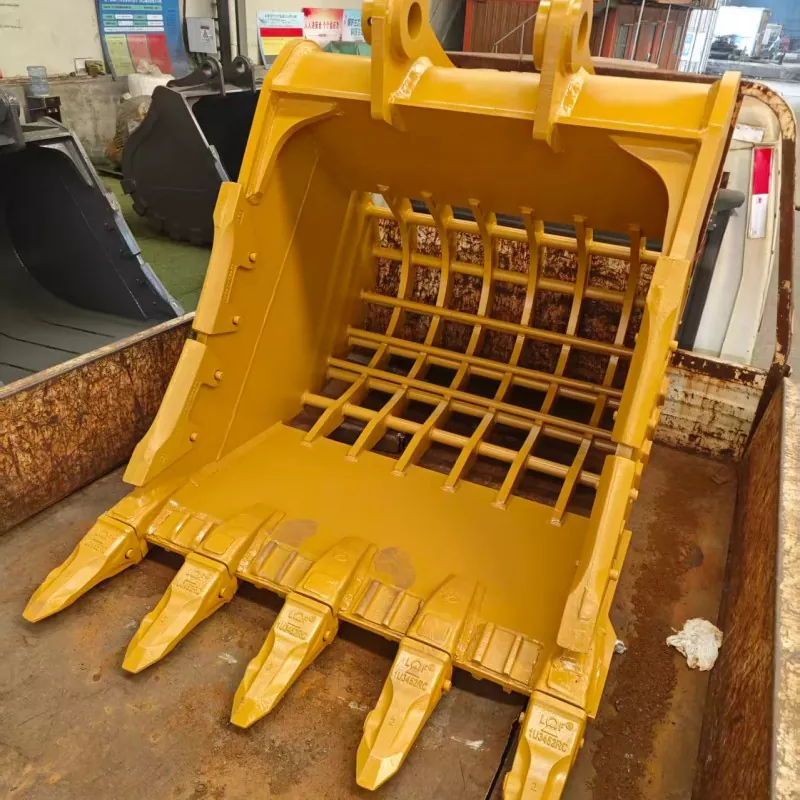

XINGCHUANG excavator skeleton screening bucket for construction waste sorting XINGCHUANG skeleton screening bucket structure and manufacturing details

Key Factors That Affect Screening Efficiency

In practical operation, screening results depend on several factors. Selecting the right configuration helps avoid poor separation, excessive material retention and unnecessary equipment wear.

Selection Factor What Buyers Should Consider
Grid spacing Should correspond to the target particle size and separation requirements.
Excavator tonnage Determines the appropriate bucket dimensions, weight and mounting configuration.
Material characteristics Soil moisture, stone size, material density and debris composition affect screening performance.
Bucket capacity Should match the excavator's lifting capacity and daily handling requirements.
Operating conditions Heavy demolition, quarry work and river cleaning may require different reinforcement configurations.

For example, smaller grid openings are suitable when finer material separation is required, while larger openings allow faster passage of smaller particles when handling coarse materials.

We recommend confirming the actual material composition and desired separation size before placing an order.

Technical Specifications

Parameter Specification
Adaptable Excavator Model 1 Ton – 50 Ton excavators
Main Material High-strength Q355 Manganese Steel
Production Technology Automatic integral welding, secondary stress relief treatment, reinforced structure
Grid Spacing 50mm – 200mm, customizable
Bucket Capacity 0.06m³ – 3.8m³, customizable
Structural Features Hollow grid design, reinforced construction, optimized curved bucket body
Main Functions Material screening, soil and stone separation, debris sorting
Application Areas Construction waste recycling, quarry screening, river dredging, foundation cleaning and farmland improvement
Customization OEM / ODM and non-standard manufacturing
Supply Options Factory direct supply, bulk orders and customized production
Export Markets Europe, Southeast Asia, Africa, Australia, the Middle East and other international markets
Certification CE

Note: Actual dimensions, weight, capacity, grid spacing and mounting configuration depend on the excavator model and customized requirements. Please contact us for a detailed drawing and technical confirmation.

OEM and Custom Manufacturing Support

Different projects often require different screening configurations. A bucket designed for separating soil from construction waste may not be suitable for handling large stones or wet river sediment.

At XINGCHUANG, we support OEM and ODM production according to customer drawings, excavator specifications and application requirements.

Our customization options include:

  • Grid spacing and opening dimensions
  • Bucket width, height and overall capacity
  • Steel plate thickness and reinforcement structure
  • Mounting dimensions and connection configuration
  • Customized designs for different excavator tonnages
  • Batch production for distributors and engineering contractors

Before production, we can confirm the key dimensions and structural requirements to help ensure compatibility with your excavator.

Whether you need a standard model or a customized solution, we provide direct factory communication, technical support and bulk supply services.

Frequently Asked Questions

Can this bucket separate different sizes of stones in one operation?

Yes. The screening gaps determine which particles can pass through the bucket. By selecting an appropriate grid spacing, operators can separate finer soil and smaller stones from larger materials during loading. However, the bucket is intended for preliminary screening rather than precise multi-grade aggregate classification.

What should I provide to confirm excavator compatibility?

We recommend providing your excavator brand, model, operating weight and existing bucket mounting dimensions. If available, photographs of the original bucket connection or technical drawings will also help us confirm the correct configuration.

Is it suitable for wet soil and sticky materials?

It can be used for certain wet soil and sediment applications. However, moisture content and clay characteristics can affect material flow and screening efficiency. For highly sticky materials, we recommend evaluating the grid opening and bucket structure according to actual site conditions before production.

Can you manufacture screening buckets for excavators above 30 tons?

Yes. Our standard customization range covers excavators from 1 ton to 50 tons. For large excavators, we evaluate bucket capacity, structural reinforcement, mounting dimensions and machine load requirements before confirming the design.

What inspections are carried out before shipment?

We inspect key dimensions, welding quality, structural condition and customized connection requirements. Additional inspection items can be discussed according to the customer's project specifications and quality requirements.

Do you accept customized bulk orders for overseas distributors?

Yes. We support OEM and ODM manufacturing as well as batch orders. Customers can provide drawings, technical specifications or application details, and our team will help confirm the design and production requirements. Delivery schedules are determined by product configuration and order quantity.

Work Directly with XINGCHUANG

With more than 12 years of manufacturing experience, XINGCHUANG provides excavator attachments for contractors, equipment distributors and engineering companies worldwide.

As a CE-certified manufacturer, we focus on practical product design, reliable fabrication and flexible customization. Our factory-direct supply model helps customers communicate specifications directly with our team and obtain solutions suited to their projects.

If you are sourcing Excavator Skeleton Screening Buckets, send us your excavator model, target screening size and application details. We will help you select a suitable configuration and provide a quotation for your project.
